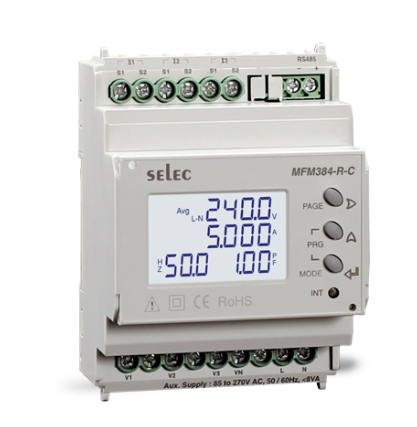

True RMS Measurement, Power & Power Factor Measurement, Import / Export Energy [MFM384-R-C]
₹5,132.00
- Display Type: LCD with Backlight Display
- Configuration: 1 Row of 4 Digits, 2 Rows of 7 Digits
- Electrical Connection: 3Ø – 3W, 3Ø – 4W, 2Ø – 3W, 1Ø – 2W
- Supply Voltage: 85 to 270V AC (45/65Hz)
- Size: 70mm
- Mounting Type: Din Rail Mount
- Certification CE
Features
Phase Angle Detection, Energy (Active / Reactive / Apparent), Import / Export Energy, Min / Max Demand Power
Communication Protocol RS485 and MODBUS RTU. Communication Interface RS485 and MODBUS RTU
CT Primary 1 / 5A to 10kA (Programmable for Any Value)
CT Secondary 1 / 5 A (Programmable)
PT Primary 100V to 500kV (Programmable for Any Value)
PT Secondary 100V to 500V (Programmable for Any Value)
