SDM630 Modbus V2, multi-function power analyser, 1p2w 3p3w 3p4w, modbus/pulse output port RS485

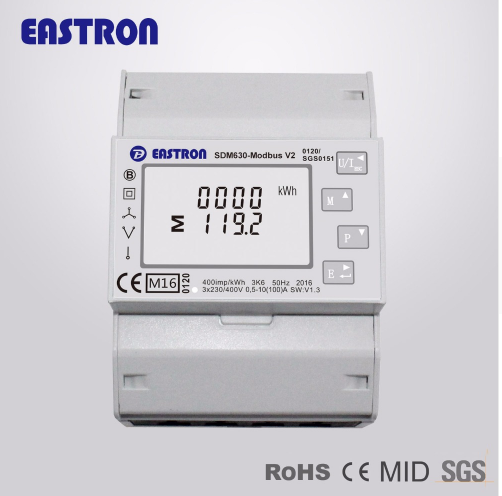

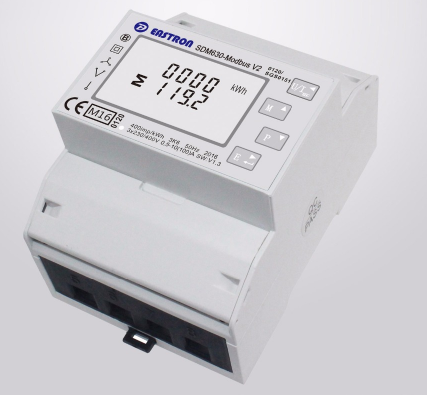

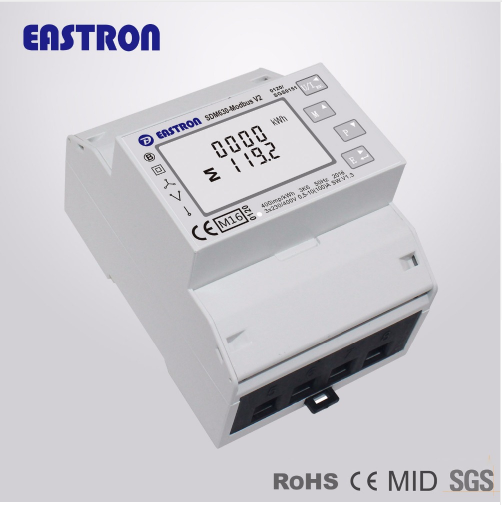

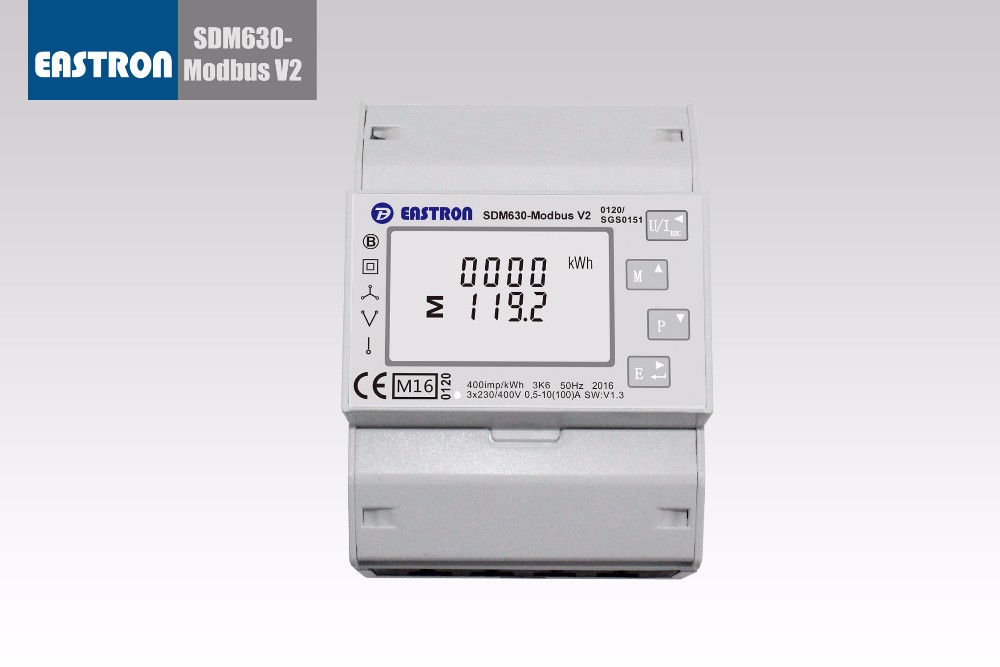

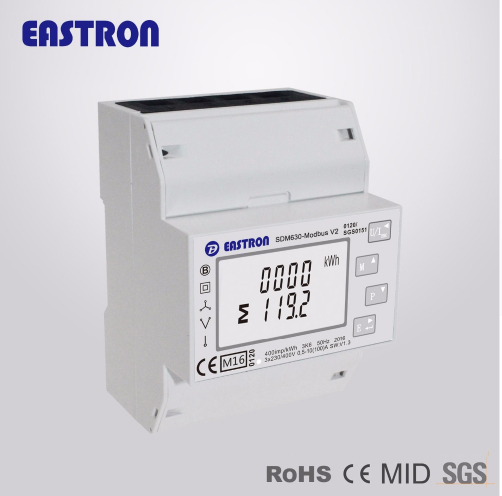

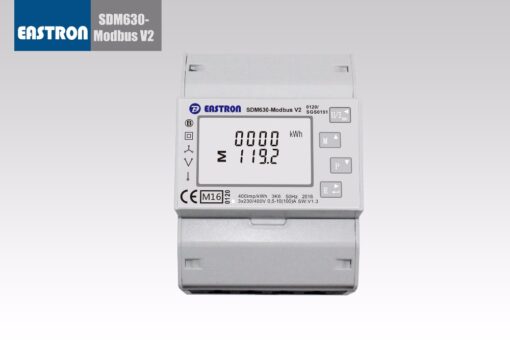

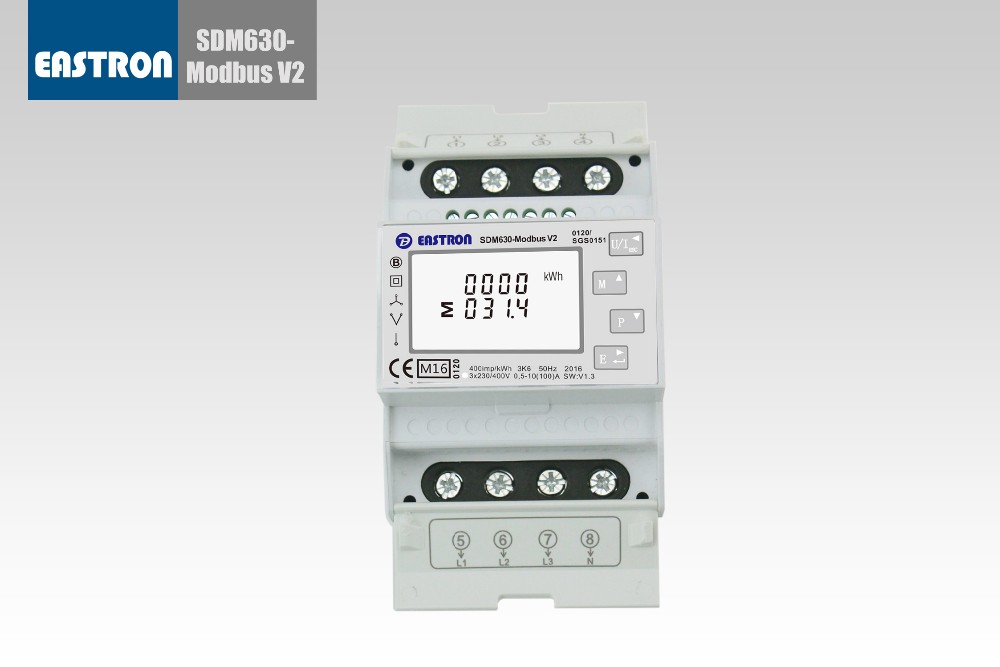

Three-Phase Multifunction DIN-rail Meter:- EASTRON ELECTRONIC The SDM630-Modbus V2 is a three-phase din rail energy meter with a built-in and isolated RS485 port and pulse outputs. It can be used for both single and three-phase networks to measure active energy and reactive energy, voltage, current, active and reactive power, apparent power, power factor, max. demand, and frequency, etc. The meter is provided with a non-violated memory system that ensures the readings are not lost or altered when power off. Class 1.0 Accuracy 100A direct connect load Modbus port Modbus RTU 2 Pulse output 9 Full parameters measured 4 modules wide Button navigation 35mm DIN rail mounted Brand: Eastron Model: S0M630-Modbus V2 Standard: IEC62053-21 Rated Voltage (UM: 3×2301400)V Voltage range: 0.8-1.2 Un Base Current UM:10A Max. Current :100A Mini Current : 0.5A Starting current : 0.4% of lb Power consumption : <2W/10VA Frequency : 50/60Hz1±2%) Pulse 1 Constant :100/10/1/01/ 0.01/0.0025imp Pulse 2 Constant : 400imp/kWh Remote Reading : RS485 Port AC voltage test : 4KV for 1 minute Impulse voltage test : 6kV @ 0.51 open circuit Overcurrent test : 30.Imax for 10ms Mechanical Environment: M1 Electromagnetic environment : E2 Working temperature : 386-25—+55`C Electrostatic Discharges : 15kV air gap IEC 61000-4-2 Electromagnetic RF Fields : 80-2000MHz IEC61000.4-3 Electrical Fast Transients : 4kV IEC61000-4-4 Surge test : 4kV IEC61000-4-5 Conducted Disturbances :10V IEC61000-4-6 Emissions : EN55022 Climatic influences : IEC60068-2 Penetration of Dust & Water : IP511EC60529 Resistance to Heat & Fire : IEC60695-2-11
