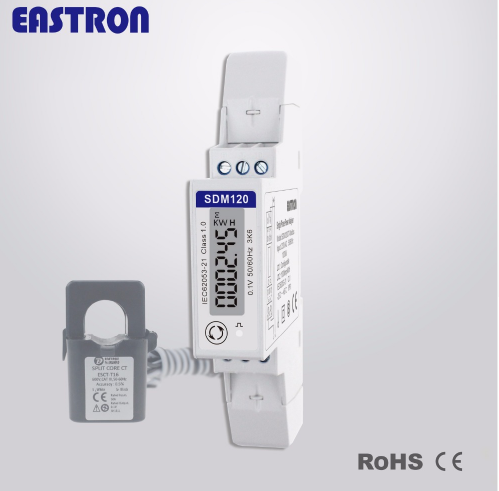

SDM120CT-Modbus CT100A/5A Operated Multifunction Single Phase Energy Meter with RS485 Communication

The energy-meters “with a white back-lighted LCD screen for prefect reading” are used to measure single-phase like residential, utility and Industrial application. The unit measures and displays various important electrical parameters, and provide a RS485 communication port for remote reading and monitoring. Bi-directional energy measurement makes the unit a good choice for solar PV energy metering. The compact design and din rail installation provides a easy and economical solution for your metering demand. Accuracy Voltage0.5% of range maximum Current0.5% of nominal Frequency 0.2% of mid-frequency Power factor1% of Unity Active power 1% of range maximum Reactive power 1% of range maximum Apparent power 1% of range maximum Active energy Class 1 IEC62053-21 Class B EN50470-3 Reactive energy 1% of range maximum
