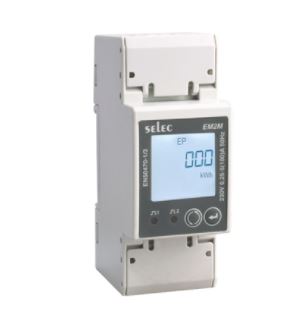

EM2M-1P-C-100A [Single Phase, 2 Pulse Outputs, Direct 100A]

₹2,315.00

Electrical Connection 1Ø – 2W.
100A Direct Connection
Power (Active / Reactive/Apparent)
Power Consumption 8VA Max
Input Current Range 5A AC (Min – 10mA, Max – 100A)
Size 35 x 90mm
Features: Self Powered
Certification: CE

Category: Multifunction Energymeters - RS485

Description
Reviews (0)

Description

Display Type LCD with Backlight with Configuration 7 Digits Energy Meter, Electrical Connection 1Ø – 2W. Type of Output Two Pulse Outputs and Communication Protocol RS485 and MODBUS RTU.

Supply Voltage 100 176 to 276V AC (Self – Powered), (45 to 65Hz)
Mounting Type Din Rail
Bi – directional Import / Export Energy measurement
Two Pulse Outputs
