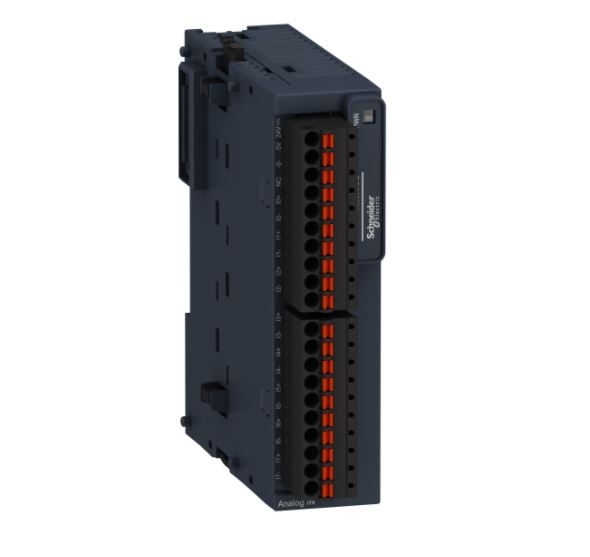

Analog input module, Modicon TM3, 8 inputs (spring) 24 VDC
| range of product |
Modicon TM3
|
|
|---|---|---|
| product or component type |
Analog input module
|
|
| range compatibility |
Modicon M221
Modicon M241 Modicon M251 Modicon M262 |
|
| analogue input number |
8
|
|
| analogue input type |
current 4…20 mA
current 0…20 mA voltage 0…10 V voltage – 10…10 V |
| analogue input resolution |
12 bits
11 bits + sign |
|
|---|---|---|
| permissible continuous overload |
13 V, analogue input type: voltage
40 mA, analogue input type: current |
|
| input impedance |
<= 50 Ohm current
>= 1 MOhm voltage |
|
| LSB value |
2.44 mV 0…10 Vvoltage
4.88 mV – 10…10 Vvoltage 4.88 µA 0…20 mAcurrent 3.91 µA 4…20 mAcurrent |
|
| conversion time |
1 ms + 1 ms per channel + 1 controller cycle time
|
|
| sampling duration |
1 ms
|
|
| absolute accuracy error |
+/- 1 % of full scale
+/- 0.2 % of full scale at 25 °C |
|
| temperature drift |
+/- 0.01 %FS/°C
|
|
| repeat accuracy |
+/-0.5 %FS
|
|
| non-linearity |
+/- 0.2 %FS
|
|
| cross talk |
<= 1 LSB
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
20.4…28.8 V
|
|
| type of cable |
Twisted shielded pairs cable <30 m for input circuit
|
|
| current consumption |
40 mA at 5 V DC via bus connector full load
35 mA at 5 V DC via bus connector no load 30 mA at 24 V DC via external supply no load 40 mA at 24 V DC via external supply full load |
|
| local signalling |
1 LED (green) for PWR
|
|
| electrical connection |
10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs and supply
10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs |
|
| insulation |
Between input and supply at 1500 V AC
Between input and internal logic at 500 V AC |
|
| marking |
CE
|
|
| surge withstand |
1 kV power supply common mode conforming to EN/IEC 61000-4-5
0.5 kV power supply differential mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5 |
|
| mounting support |
Top hat type TH35-15 rail conforming to IEC 60715
Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
|
| height |
90 mm
|
|
| depth |
70 mm
|
|
| width |
23.6 mm
|
|
| net weight |
0.1 kg
|
| standards |
EN/IEC 61131-2
EN/IEC 61010-2-201 |
|
|---|---|---|
| resistance to electrostatic discharge |
8 kV in air conforming to EN/IEC 61000-4-2
4 kV on contact conforming to EN/IEC 61000-4-2 |
|
| resistance to electromagnetic fields |
10 V/m 80 MHz…1 GHz conforming to EN/IEC 61000-4-3
3 V/m 1.4 GHz…2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz…3 GHz conforming to EN/IEC 61000-4-3 |
|
| resistance to magnetic fields |
30 A/m conforming to EN/IEC 61000-4-8
|
|
| resistance to fast transients |
1 kV (I/O) conforming to EN/IEC 61000-4-4
|
|
| resistance to conducted disturbances |
10 V 0.15…80 MHz conforming to EN/IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
|
| electromagnetic emission |
Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011
Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
|
| immunity to microbreaks |
10 ms
|
|
| ambient air temperature for operation |
-10…55 °C horizontal installation
-10…35 °C vertical installation |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| relative humidity |
10…95 %, without condensation (in operation)
10…95 %, without condensation (in storage) |
|
| IP degree of protection |
IP20
|
|
| pollution degree |
2
|
|
| operating altitude |
0…2000 m
|
|
| storage altitude |
0…3000 m
|
|
| vibration resistance |
3.5 mm at 5…8.4 Hz on DIN rail
3 gn at 8.4…150 Hz on DIN rail |
|
| shock resistance |
15 gn for 11 ms
|
