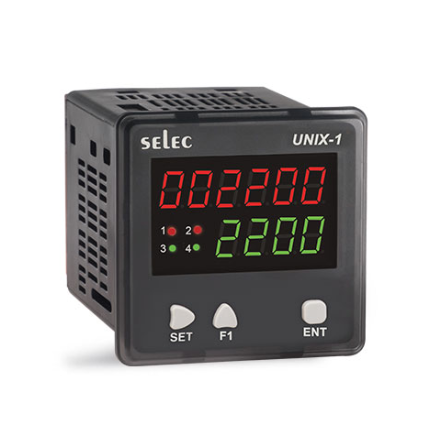

PLC- 6 + 4 LED HMI DI (3+1) + 4DO + 3AI (TC/RTD, 0-20mA, 0-10V) [UNIX-1-230V]
₹3,712.00
- Display Types 6 Red + 4 Green Digits LED Display , 2 Red + 2 Green LED’s
- Size 72 x 72 mm
- Digital Inputs 3 + 1* (PNP Type) Including 1 Fast Input Channel
- Analog Inputs 3* Channels (1 TC / RTD, 1 (0-20)mA, 1* (0-10)VDC )
- Digital Outputs 2 Transistor Outputs, 2 Relay Outputs
- Output Rating 5A @230VAC / 24VDC(Relay), 100mA @24V DC (Transistor)
- Analog Outputs NA
- RTC with Time Switch function NO
- Code Memory 240KB
- Communication Interface RS485 Based MODBUS RTU Protocol
- Expansion NO
- Supply Voltage 90-270 VAC, 50-60 Hz
- Mounting Type Panel Mount
