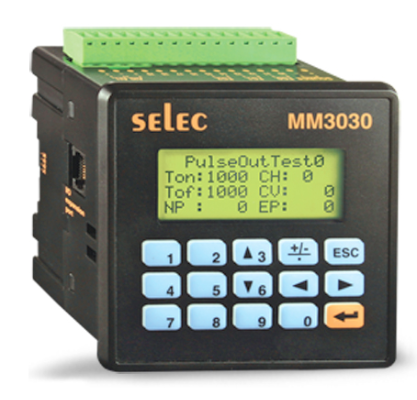

PLC – 10DI, 8DO, 2AI & 24VDC – RTC, Modbus &/OR Proprietary Expansion [MM3030-2]
₹12,953.00
- Display Types 4 x 16 Characters LCD (With Backlight) + 15 Keys (12 User Configurable)
- Size 96 x 96mm
- Digital Inputs 10 (PNP Type) Including 3 Fast Inputs Channels
- Analog Input 2 Channels (0-10V / 0-20mA)
- Digital Outputs 8 Transistor Outputs, Including 2 Fast Output Channels
- RTC With Time Switch Function Yes
- Code Memory 351KB
- Expansion Yes
- Supply Voltage 18 – 26 VDC
Description:
- Display Types 4 x 16 Characters LCD (With Backlight) + 15 Keys (12 User Configurable). Output Rating Fast Outputs: Sink type 50mA @24VDC, Normal Outputs: Source type 100mA @24VDC. Analog Outputs NA. Mounting Type Panel/DIN Rail. Communication Interface RS485 / RS232 Based MODBUS RTU Protocol, Proprietary Protocol
