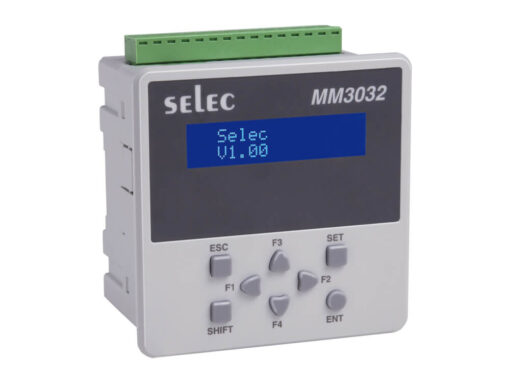

MM3032-2-0-0-230V V2

₹7,197.00

96X96 size, Rail/Panel Mount PLC, LCD Text Display with 16*2 Characters with Yellow Green Display with 8 Keys.
8 Digital Inputs and 6 Relay Outputs
1/2 Analog Inputs and Optional Analog Output (0-10V)
Fast Input Upto 5KHz
RJ25 6 pin MODBUS RS485 Serial Slave Port for Downloading and Communication

Display Types	2 x 16 Characters LCD (With Backlight) + 8 Keys (6 User Configurable)
Size	96 x 96mm
Digital Inputs	8 (PNP Type) Including 1 Fast Inputs Channels
Analog Input	2 Channels ( 0-20mA)
Digital Outputs	6 Relay Outputs
Output Rating	5A @230VAC / 24VDC
Analog Outputs	1 Channel (0-10V)
RTC With Time Switch Function	NO
Code Memory	240KB
Communication Interface	RS485 Based MODBUS RTU Protocol
Expansion	NO
Supply Voltage	100-270V AC without retention 180-270V AC with retention
Mounting Type	Panel/DIN Rail
FI / Maximum Counting Frequency	FC0 (I0 & I1) – 5KHz, Normal digital input: 30Hz
