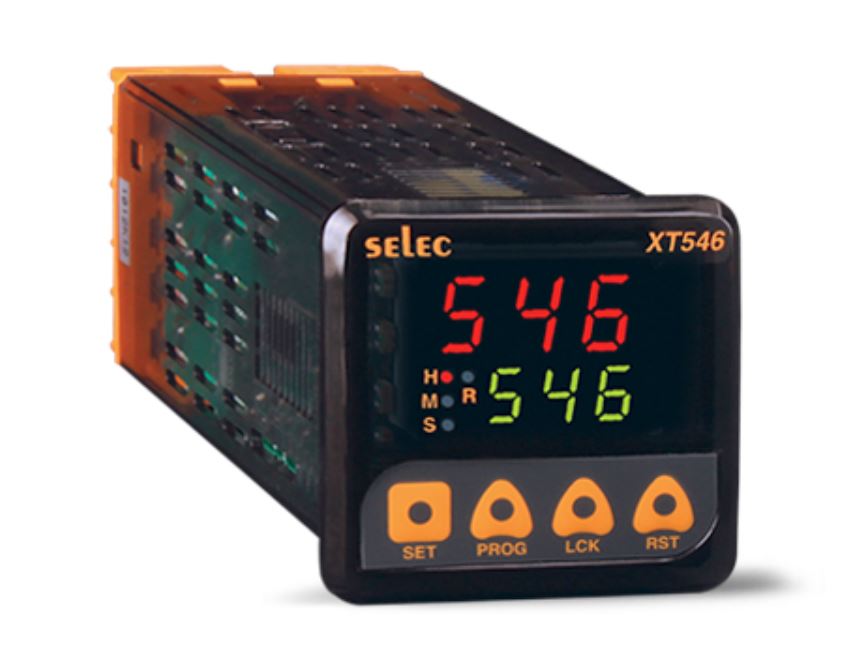

Name: Multifunction Timer, 6 Time Ranges, Size : 48 x 48mm [XT546 BX]
SKU: 167
Price: 1779.00 INR
Availability: InStock

Multifunction Timer, 6 Time Ranges, Size : 48 x 48mm [XT546 BX]

₹1,779.00

Display Type:- 7 Segment LED, Dual Display
Display Configuration:- 3+3 Digits
Feature:- Memory Retention
Relay Contact:- 1 C/O SPDT
Range:- 9.99 / 99.9 / 999sec, 9.59min sec, 99.9 / 999min, 9.59hr : min, 99.9 / 999 hr
Operating Modes:- ON Delay / Interval / Cyclic ON First / Cyclic OFF First
Reset:- Front, Remote, Power Interruption
Accuracy:- ± 0.05% or 50 ms (Whichever Is Greater)
Counting Direction:- Down
Supply Voltage:- 85 to 270V AC , 24V AC / DC
Size:- 48 x 48mm
Mounting Type:- Panel Mount
Certification:- CE
